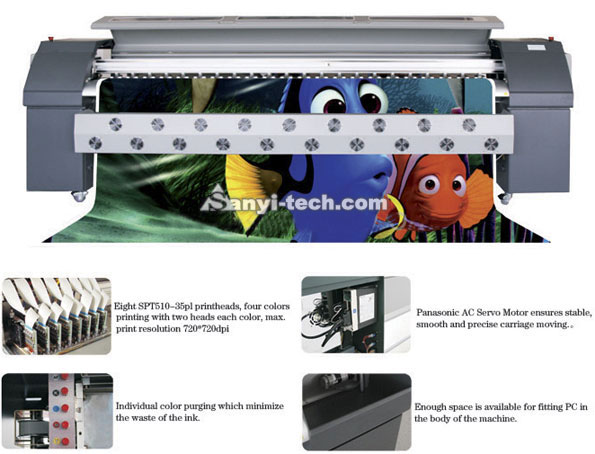

FY-3208G Solvent Printer
Product Model FY-3208G
Printhead SPT510-35PL
Number of Printhead 8 Heads
Maximum Print Width 3200mm
Output (m²/h)
Print mode Standard Output (m²/h)
360x360 1 pass 101
240x720 2 pass 76
240x1080 3 pass 51
360x1080 3 pass 34
720x720 4 pass 26
Ink
Type : Solvent Ink / Mild Solvent Ink
Color : 4 Colors( C , M , Y , K )
Capacity : 1L or 5L per Main Tank of Each Color
Ink Supply System : Low Ink Detector, Auto or Manual Ink Supply System
Media
Width : 3300mm
Type : Vinyl,Flex,Polyester,Back-lit Film,Window Film,etc
Auto Media Feeding System
Equipped ( Max. Media Weight 80kg )
Auto Cleaning System
Individual Positive Pressure Cleaning
Anti-clogged Flash Function & Capping System
Pre-heating & Drying System
Equipped
Clamp
Equipped
Print Interface
Optical Fiber
Printhead Height
2 to 6 mm Above Media Adjustable
RIP Software
Maintop , UltraPrint , PhotoPrint , Topaz , Wasatch , Caldera
Input Power
AC 220V ，50Hz/60Hz
Machine Dimension
L4600 x W820 x H1320 mm Net Weight : 482Kg
Package Dimension
L4650 x W970 x H1600 mm Gross Weight : 770Kg
Operation Environment
Temperature : 20℃—28℃ Humidity : 40%—60%
FY-3208G Solvent Printer
Product Model FY-3208G
Printhead SPT510-35PL
Number of Printhead 8 Heads
Maximum Print Width 3200mm
Output (m²/h)
Print mode Standard Output (m²/h)
360x360 1 pass 101
240x720 2 pass 76
240x1080 3 pass 51
360x1080 3 pass 34
720x720 4 pass 26
Ink
Type : Solvent Ink / Mild Solvent Ink
Color : 4 Colors( C , M , Y , K )
Capacity : 1L or 5L per Main Tank of Each Color
Ink Supply System : Low Ink Detector, Auto or Manual Ink Supply System
Media
Width : 3300mm
Type : Vinyl,Flex,Polyester,Back-lit Film,Window Film,etc
Auto Media Feeding System
Equipped ( Max. Media Weight 80kg )
Auto Cleaning System
Individual Positive Pressure Cleaning
Anti-clogged Flash Function & Capping System
Pre-heating & Drying System
Equipped
Clamp
Equipped
Print Interface
Optical Fiber
Printhead Height
2 to 6 mm Above Media Adjustable
RIP Software
Maintop , UltraPrint , PhotoPrint , Topaz , Wasatch , Caldera
Input Power
AC 220V ，50Hz/60Hz
Machine Dimension
L4600 x W820 x H1320 mm Net Weight : 482Kg
Package Dimension
L4650 x W970 x H1600 mm Gross Weight : 770Kg
Operation Environment
Temperature : 20℃—28℃ Humidity : 40%—60%
Product Model FY-3208G
Printhead SPT510-35PL
Number of Printhead 8 Heads
Maximum Print Width 3200mm
Output (m²/h)
Print mode Standard Output (m²/h)
360x360 1 pass 101
240x720 2 pass 76
240x1080 3 pass 51
360x1080 3 pass 34
720x720 4 pass 26
Ink
Type : Solvent Ink / Mild Solvent Ink
Color : 4 Colors( C , M , Y , K )
Capacity : 1L or 5L per Main Tank of Each Color
Ink Supply System : Low Ink Detector, Auto or Manual Ink Supply System
Media
Width : 3300mm
Type : Vinyl,Flex,Polyester,Back-lit Film,Window Film,etc
Auto Media Feeding System
Equipped ( Max. Media Weight 80kg )
Auto Cleaning System
Individual Positive Pressure Cleaning
Anti-clogged Flash Function & Capping System
Pre-heating & Drying System
Equipped
Clamp
Equipped
Print Interface
Optical Fiber
Printhead Height
2 to 6 mm Above Media Adjustable
RIP Software
Maintop , UltraPrint , PhotoPrint , Topaz , Wasatch , Caldera
Input Power
AC 220V ，50Hz/60Hz
Machine Dimension
L4600 x W820 x H1320 mm Net Weight : 482Kg
Package Dimension
L4650 x W970 x H1600 mm Gross Weight : 770Kg
Operation Environment
Temperature : 20℃—28℃ Humidity : 40%—60%
FY-3208G Solvent Printer
Product Model FY-3208G
Printhead SPT510-35PL
Number of Printhead 8 Heads
Maximum Print Width 3200mm
Output (m²/h)
Print mode Standard Output (m²/h)
360x360 1 pass 101
240x720 2 pass 76
240x1080 3 pass 51
360x1080 3 pass 34
720x720 4 pass 26
Ink
Type : Solvent Ink / Mild Solvent Ink
Color : 4 Colors( C , M , Y , K )
Capacity : 1L or 5L per Main Tank of Each Color
Ink Supply System : Low Ink Detector, Auto or Manual Ink Supply System
Media
Width : 3300mm
Type : Vinyl,Flex,Polyester,Back-lit Film,Window Film,etc
Auto Media Feeding System
Equipped ( Max. Media Weight 80kg )
Auto Cleaning System
Individual Positive Pressure Cleaning
Anti-clogged Flash Function & Capping System
Pre-heating & Drying System
Equipped
Clamp
Equipped
Print Interface
Optical Fiber
Printhead Height
2 to 6 mm Above Media Adjustable
RIP Software
Maintop , UltraPrint , PhotoPrint , Topaz , Wasatch , Caldera
Input Power
AC 220V ，50Hz/60Hz
Machine Dimension
L4600 x W820 x H1320 mm Net Weight : 482Kg
Package Dimension
L4650 x W970 x H1600 mm Gross Weight : 770Kg
Operation Environment
Temperature : 20℃—28℃ Humidity : 40%—60%
