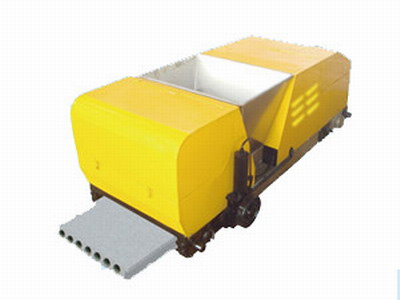

Concrete Lightweight Wall Panel Forming Machine


1- The concrete product produced by Lightweight Wall Panel Forming machine can also be used as roof of houses with the materials of cement, sand and aggregate.
2- Lightweight Wall Panel Forming panel machine is a movable producing panel machine which need platform to move during producing.
3- Thin steel wire is put inside the panel in advance before producing. And this process is easy, not using tensile machine.
4-The machine is applied to the high tech. Extrusion technique can make the panels more density and surface much smoother.
5- Patent for lightweight panel machine.
Patent No.: ZL20090025183.7

Specification
Model
HQJ Slab width
(mm) Slab thickniss
(mm) Dia. Of holes Forming speed
(m/min) Motor
Power
(KW) Vibrator
(KW) Weight
(kg)
80*600 595±2 78±1 8xΦ43 >=1.6 4 0.8 1010
90*600 595±2 88±1 7xΦ58 >=1.6 5.5 0.8 1010
100*600 595±2 98±1 7xΦ62 >=1.6 5.5 0.8 1035
120*600 595±2 118±1 5xΦ82 >=1.6 5.5 0.8 1650
200*600 595±2 198±1 3xΦ145 >=1.6 7.5 3 1680
240*280X2 280±2 238±1 2xΦ165 >=1.6 7.5 3 1700
